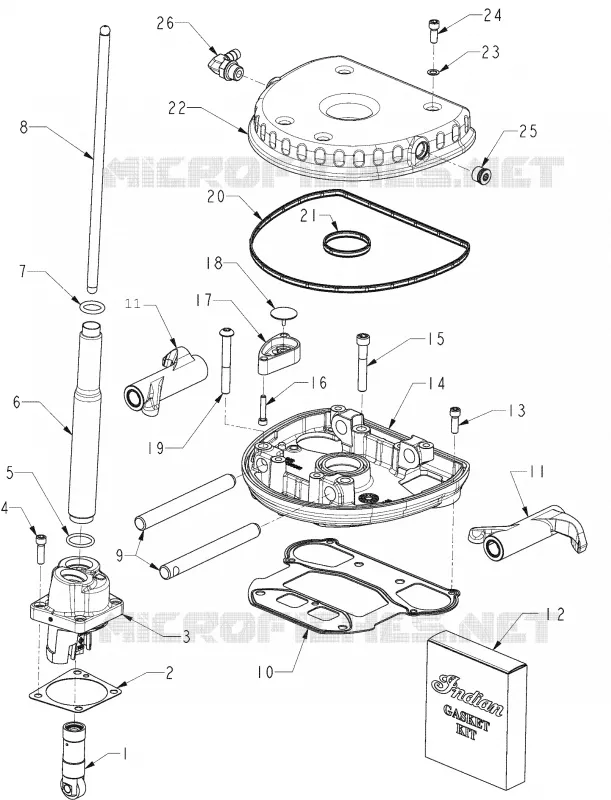

ENGINE, ROCKER ARM ASSEMBLY AND PUSH RODS - N131C/D/V ALL OPTIONS (INDIANROCKERARM12CC)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Lifter Hydraulic
N10900004
No disponible
2
Gasket Front Lifter Block
N10601179
No disponible
2
Gasket Rear Lifter Block
N10601178
No disponible
3
Block Front Lifter [Vintage]
N10901926
No disponible
3
Block Rear Lifter [Classic Dark Horse]
N10900006
No disponible
3
Block Rear Lifter [Vintage]
N10901925
No disponible
3
Block Front Lifter [Classic Dark Horse]
N10900005
No disponible
4
Screw
N70100016
No disponible
5
O-RIng .862 ID
N73000003
No disponible
6
Cover Pushrod
N10500006
No disponible
7
O-Ring .671 ID
N73000004
No disponible
8
Pushrod Front Exhaust
N10901931
No disponible
8
Pushrod Front Intake
N10901930
No disponible
8
Pushrod Rear Intake
N10901932
No disponible
8
Pushrod Rear Exhaust
N10901933
No disponible
9
Shaft Rocker
N10901199
No disponible
10
Gasket Rocker Box
N10600001
No disponible
11
Set Rocker Arm [Incl. all 4]
N10900000
No disponible
12
Kit Gasket Top End
N90100008
No disponible
12
Kit Gasket [Incl. 1-4]
N90100011
No disponible
13
Screw
N70100007
No disponible
14
Box Lower Rocker
N10201308
No disponible
15
Screw
N70100006
No disponible
16
Screw
N70100001
No disponible
17
Housing Breather Rear
N10200004
No disponible
17
Housing Breather Front
N10200003
No disponible
18
Valve Umbrella
N11201318
No disponible
19
Screw
N70100009
No disponible
20
Seal Rocker Box
N10601259
No disponible
21
Seal Chimney
N10601260
No disponible
22
Box Top Rocker
N10200002
No disponible
23
Seal Underwasher
N10601924
No disponible
24
Screw
N70100008
No disponible
25
Plug
N71100003
No disponible
26
Fitting 90 Degree
N71600007
No disponible
Los esquemas son meramente informativos. En caso de duda, nuestros especialistas están a su disposición para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de seleccionar la cantidad deseada. El precio unitario indicado corresponde a una unidad de cada referencia.

Lista de máquinas que utilizan este esquema
